    Horizontal Tire Packing Machine Online Operation GW600 PLC Control 20-90r/Min Ring Speed

    Ask Lasest Price
    Brand Name : jlpack
    Model Number : GW600
    Certification : ISO9001,CE
    Payment Terms : T/T
    Supply Ability : 200 sets/Year
    Delivery Time : Stand-alone 1 week ,the packing line 150days
    • Product Details
    • Company Profile

    Horizontal Tire Packing Machine Online Operation GW600 PLC Control 20-90r/Min Ring Speed

    Online operation horiontal tyre packing machine tire wrapping machinery

    Online operation horiontal tyre packing machine tire wrapping machinery​ application:

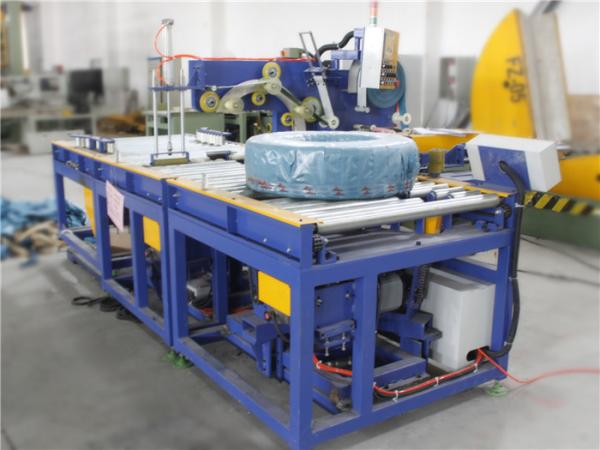

    Fully automatic horiontal tire packing machine with motor driven conveyor is an automatic solution for packing tires horizontally (eye vertical). The machine can be cooperated with the upstream production or handling equipment to complete an automatic packing line for continuous tyre packing, which will greatly enhance the working efficiency and achieve excellent packaging effect for tyre manufacturers.


    Online operation horiontal tyre packing machine tire wrapping machinery​ basic features:

    • Excellent collections. Well-known brands are adopted for main components.
    • Machine with powered conveyors for continuous tyre transferring.
    • Indicator alarms automatically when trouble occurs.
    • The turning ring is controlled by converter. Overlap rate could be adjusted according to the requirement.
    • Package height could be adjusted for different OD.
    • Material tension could be adjusted automatically.
    • The special brake device for control the tension of packing material to avoid material folding.
    • Separate electrical box for safe operation, technical testing and trouble-shooting.
    • Separate material carriage and cutter device make the packing process more efficient.
    • Supporting and protection rollers are covered by polyurethane to protect the product.
    • PLC & HMI are adopted (option).
    • Can setting packing tape & stretch film for wrapping just in one packing process to make the working more efficient (option).
    • Easy operation and maintenance.

    Online operation horiontal tyre packing machine tire wrapping machinery​ main parameters:

    ITEMSGW600GW900
    Object ID≥200mm≥300mm
    Object OD≤600mm≤900mm
    Object height≤300mm≤300mm
    Object weight≤250kg≤400kg
    Wrapping tapePp Knit belt/ paperPp Knit belt/ paper
    Ring speed20~80r/min20~80r/min
    Overlap rate30%~70%30%~70%
    Power outputAbout 1.5kwAbout 1.5kw
    Power supply380V, 3phase 5wires380V, 3phase 5wires
    Air source6~8kgf/cm26~8kgf/cm2

    Note: the datas are only for reference, the machine can be custom designed according to specific object size.
